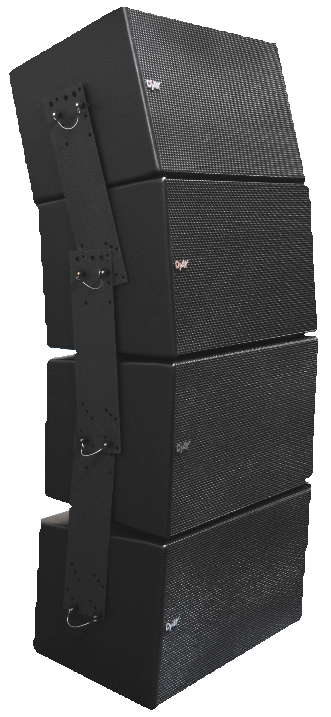

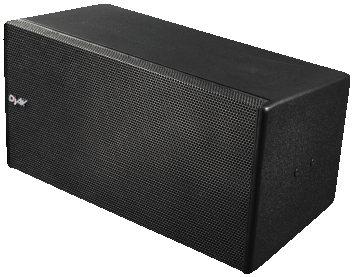

美國帝杰DjAV 707 15“陣列音箱PRODUCT FEATURES
- 產品品牌：帝杰（DjAV）
- 產品型號：707
- 業務代表：魏微 13665536650
- 業務代表：徐善龍 15955317354
Components/組成：LF/低音驅動器：1×15”（38Cm）Hi-flux 8 Ohms Driver
MF/中音驅動器：2×8” Driver；
HF/高音驅動器：2×1” Driver on a HL Horn
Height×Width×Depth/高×寬×深：17.5”×33.5”×16.75”
Shape：10°
Weight/重量：35.5Kg（80Lbs）
Connectors：2×NL4MP 4-pole SPEAKON（Bi-Amp）
Construction/工藝：UPWE. finish with structured black coating, Waterproofing
Fittings：Grill Perforated Steel
Flying：Integral flying system. Intercabinet Angle Adjustments=1°to 5°
SYSTEM SPECIFICATIONS 707 with 707E controller
Frequency Response/頻率響應：50Hz-20kHz
Usable Range /使用范圍@-6dB：40Hz-20kHz @-6dB
Sensitivity /靈敏度1W @ 1m：98dB SPL Nominal, 96dB SPL Wideband
Peak SPL/最高聲壓級 @1m：Configuration dependent
Dispersion：Coupling Plane：Not usable as a single cabinet. Configuration dependent
Non Coupling Plane：120°
Crossover Frequency/分頻點：200Hz Passive
Nominal Impedance/標準輸入阻抗：8Ohms; 16Ohms
Recommended Amplifiers/推薦功放：707A, 2200W into 4 Ohms, 2× cabinets per channel
SYSTEM OPERATION
Electronic Controller：The 707E Digital Controller presets are precisely matched to the 707 Series cabinets and include sophisticated protection systems. Using 707 Series cabinets without a properly-connected 707E Digital Controller will result in poor sound quality and can damage components.
HF Dispersion Configuration：After release of the front grill from its fittings, the HF Waveguide can be configured for 120 dispersion in the non-coupling plane.
Array Design：707 having tangent waveguides, can be mixed in the same array. Minimum configuration or Vertical Tangent Arrays is 3 x 707
Speaker Cables：The 707 is wired 1+ & 1- are connected to Low, 2+ & 2- are connected to Hi.
Rigging System：Please refer to the 707 User Manual before any operation.
SHIPPING & ORDERING
Packaging：707s are packaged individually.
Shipping Weight & Volume：1x 707 = 38kg (85.5lbs), 0.16cu m (5.7cu ft)
